TECHNICAL DETAILS

The Horned Sage is of course a Germanium fuzz box. Instead of the 3 transistor & 1 germanium diode combo the vintage pedals use, the Horned Sage uses 4 germanium transistors and a germanium diode.

The transistors used will be according to availability since germanium transistors are hard to obtain. Initially, again depending on availability, NPN germanium transistors have been used (MP37A & MP38A), so it can be powered by using a standard power supply and can be daisy chained to other effects with no issues. However, the use of a PP3 battery is highly recommend  since it is a cleaner power source and provides a better tone. The pedal’s  power consumption is 3.92 mA, so a single battery will last countless hours if you unplug your instrument from the input jack socket that acts as a  battery on/off switch.

Created by using:

• 4 Gain selected NOS Germanium transistors
• 1 NOS Germanium diode
• Omeg/Piher/... Potentiometers
• Quality footswitch with gold plated lugs
• Vishay metal film resistors
• Vishay, Panasonic, WIMA & CDE capacitors
• Lead free (Sn 99 / Cu0,7 / Ag 0,3) solder

It is Professionally powder coated with screen printed graphics and is built using a stripboard to resemble the fuzz boxes of yesteryears.

To use it plug your instrument or other effect output to the top right side of the pedal and the amp or other effect input to the top left side of the pedal and prepare yourself to be crushed!

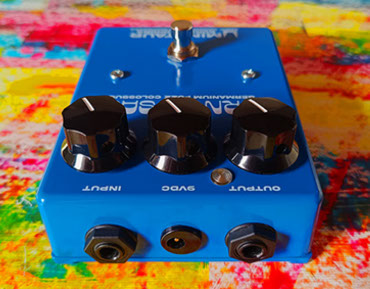

It can be powered up either by a 9V battery, or by a standard 9V adapter (like the boss ones with negative in the centre). The DC input is at the top side of the pedal, between the instrument input and output.

To make your battery last longer, please unplug the pedal’s input after using it.

For any questions or issues feel free to contact us

We’ll be more than happy to help!

The pedal is 100% built by hand upon order, so the current lead time is 4-6 weeks

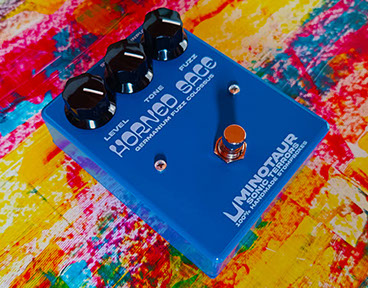

MINOTAUR SONIC TERRORS - HORNED SAGE

DESCRIPTION

The Horned Sage, is a unique Germanium fuzz that draws inspiration and re-imagines two of the best vintage fuzz boxes ever, the Tone Bender MKIV and the Burns Buzzaround.

Both these fuzzes need no introduction. The Tone Bender has been used by Led Zeppelin’s Jimmy Page and Jeff Beck amongst countless others, and the Buzzaround has most notably been used by King Crimson’s Robert Fripp.

What the Horned Sage offers, is a unique rethinking of these designs. Tonally has more aggression. The fuzz control, instead of cleaning up the fuzz, reduces the gating and produces different shades of fuzz. Of course the aggression gets reduced a bit, but it creates a more open fuzz tone as you turn it counter-clockwise. It never gets totally clean, but you can combine the fuzz control with your instrument’s volume control to clean it up.

The tone control is retouched to make it too more usable. You won’t find a position that gets too harsh, not even at its trebliest setting. All the range of the tone control is usable.

Generally speaking, the Horned Sage has a bigger tone with more low end and low mids, it is a bit louder, and more versatile.

With it you can cover a very wide range of fuzz tones. If you are after vintage Led Zeppelin or Jeff Beck fuzz tones this fuzz is for you. If you are after ultra heavy doom fuzz tones, this fuzz is for you. If you are into the alternative rock tones of the Smashing Pumpkins (Billy Corgan is already using the Horned Sage) this fuzz is for you!
